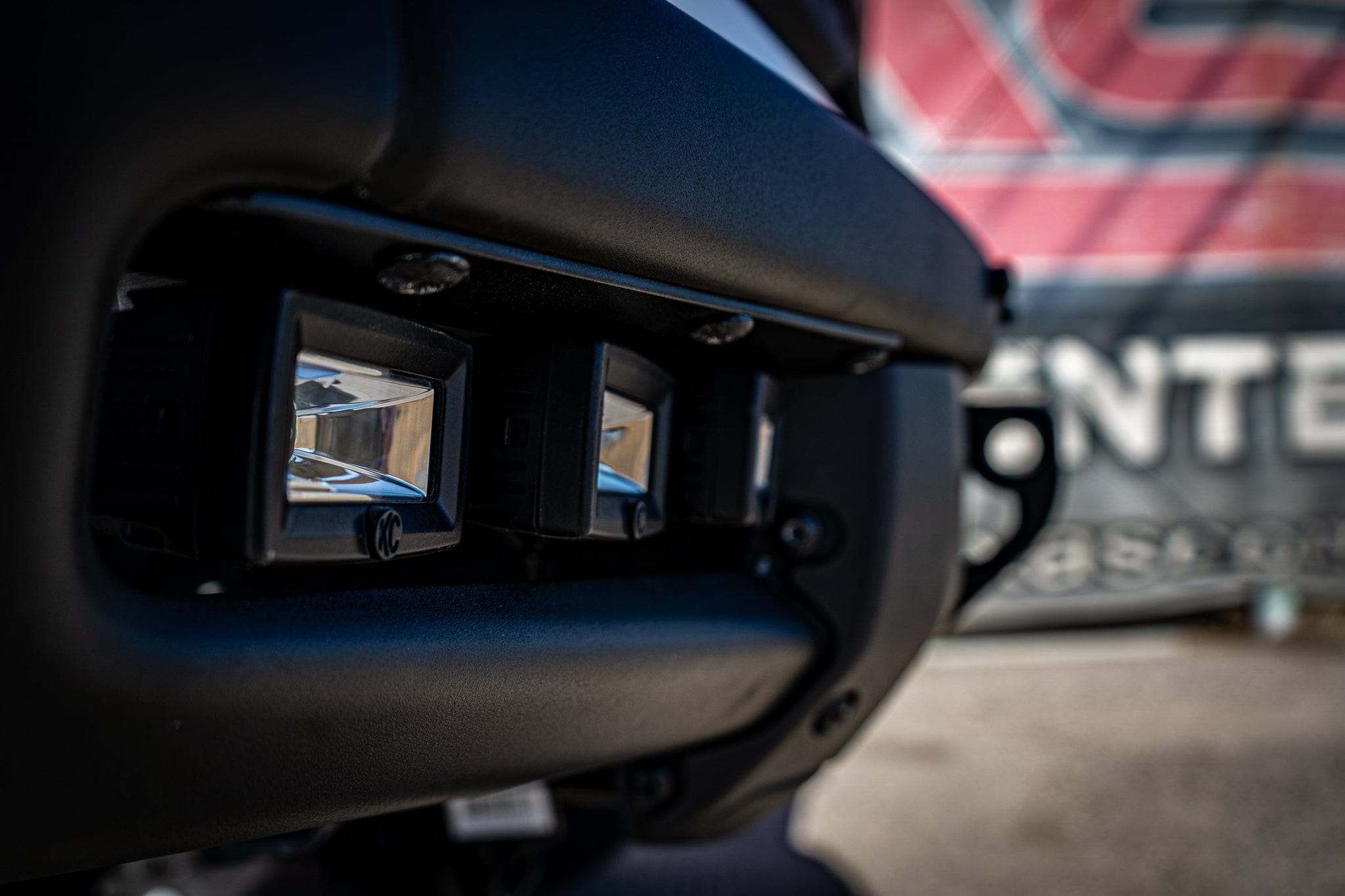

Light Pod Mount for Modular Bumper, Several options and styles are available.
When ordering with No lights we will contact you for light fitment and send the appropriate brackets for your lights.
We have 2 styles of KC Lights to choose from. When choosing the C3 we will send 2 spot and 4 flood lights, if you would like a different option on style just shoot us a message!
KC C2 System
FEATURES
-2 x 20W 2" C2 LED Area Flood Lights
-Durable Diecast 6063 Aluminum Housing
-UV Resistant Black Powder Coated Housing
-Dual Oversized Heat Sink Design for Cooler, Brighter and Longer Lasting LED Performance
-Gore® Military Grade Breather Membrane to prevent condensation and entry of dust/contaminants
-Optically Clear and Shatter Proof Lexan Lens
-Ideal for Illuminating Immediate Areas as a Work or Effective Flood light
-120° Flood Beam Pattern For Evenly Distributed Lighting
LIGHT PERFORMANCE (PER LIGHT)
-RAW Lumens: 2,200 lm
-LUX @ 10 meters: 27 lx
-Candela: 2,700 cd
-Beam Distance (Meters): 104m
SPECIFICATIONS (PER LIGHT)
-Wattage: 20W
-LED Source: CREE XMK
-LED Color: 6000K
-Amp Draw: 1.6A
-Voltage: 9V-36V
-IP Rating: IP67
-Product Dimensions: W - 2.85" x H - 2.21/1.91" x D - 2.17"
PARTS INCLUDED
-(2) 20W 2" C2 LED C-Series LED Flood Lights
-Performance Wiring Harness w/ Weatherproof DT Connectors and Switch
KC C3 System
FEATURES
-2 x 3" 12W C-SERIES C3 LED lights
-Die-Cast Aluminum Housing
-Precision Computer Designed Aluminum Reflectors
-8°: Spot Beam Pattern Optics
-On-Board Thermal Management for Light Efficiency
LIGHT PERFORMANCE (PER LIGHT)
-Raw Lumens: 1,080 lm
-Lux @ 10 Meters: 390 lx
-Candela: 39,000 cd
-Beam Distance (meters): 395m
SPECIFICATIONS (PER LIGHT)
-Wattage: 12W
-LED Source: Osram LED
-Color Temperature: 6000K
-Amp Draw: 1.10A
-Voltage: 9V-32V
-IP Rating: IP67
-Product Dimensions: W - 3.22" x H - 3.42" x D - 3.14"
PARTS INCLUDED
-(2) C3 LED Lights
-Deluxe Wiring Harness
-Die-Cast Mounting Brackets w/ hardware
PERFORMANCE OUTPUT AND CLARITY
The C-Series LED C3 lights use a forward facing LED design delivering 1,080 Lumens of light output. They are perfect for front bumper, windshield, grille applications or wherever you need immense light output in a compact package.
RIGID D-SERIES PRO SPOT MIDNIGHT
Size | Part No. | Wt (Lbs) | Optics | Watts | Amp Draw | Voltage Max | *Raw Lumens | Lux @ 10m | Beam Distance @1Lux | Beam Distance @.25Lux | Horizontal Beam Angle | Compatible Light Series |
---|---|---|---|---|---|---|---|---|---|---|---|---|
3"X3" | 202213BLK | 4.50 | SPOT | 22 | 1.5 | 36 | 2508 | 488 | 211 | 423 | 7.8 | D-SERIES PRO |
